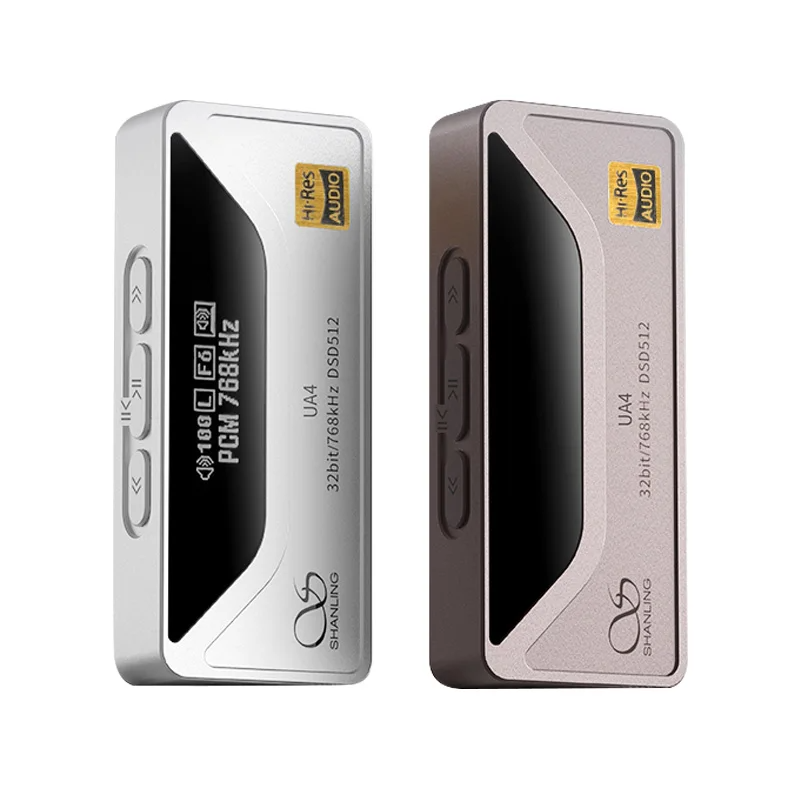

Shanling UA4 Hi-Res Portable USB DAC AMP with OLED Display ESS ES9069Q Dual RT6863 Outputs
$167.62
Product Highlights
Introducing the Shanling UA4, a high-resolution audio amplifier that’s made for those who take their music seriously. This portable USB DAC and amp combo is perfect for audiophiles on the go, ensuring you can enjoy studio-quality sound wherever life takes you. Equipped with a stunning 0.87-inch OLED display, the UA4 not only sounds amazing but looks sleek and modern too. This device features the renowned ESS ES9069Q DAC, which provides rich, detailed audio, while the dual RT6863 amplifier guarantees a powerful sonic experience. With both 3.5mm and 4.4mm outputs, you can connect it to a wide array of audio gear, from your favourite headphones to portable speakers.
One of the standout features of the UA4 is its user-friendly design. The full-screen hardware buttons make navigation a breeze, allowing you to effortlessly switch between tracks and adjust volume levels, even on the move. Whether you’re listening to your favourite playlist or tuning into a podcast, the UA4 delivers an immersive audio experience that makes every note come alive.
If you’re keen on taking your audio experience up a notch, the Shanling UA4 is the key to unlocking high-definition sound. Compact and lightweight, you can easily slip this stylish device into your bag, making it an excellent companion for your daily commute, travel, or simply enjoying music at home.
Pros
- High-resolution sound quality with ESS ES9069Q DAC
- Compact and portable design, perfect for travel
- Intuitive full-screen hardware buttons for easy control
- Compatible with various audio gear via 3.5mm and 4.4mm outputs
- Stunning OLED display adds a modern touch
Cons
- Battery life may vary depending on usage
- Limited compatibility with very low-impedance headphones
- Some users may prefer a more extensive feature set
Summary
Parameter | Details |
---|---|
Model | Shanling UA4 |
Type | Portable USB DAC AMP |
Display | 0.87-inch OLED |
DAC Chip | ESS ES9069Q |
Amplifier | Dual RT6863 |
Outputs | 3.5mm, 4.4mm |
Control | Full Screen Hardware Buttons |
Description
Specification:
Brand: Shanling
Model: UA4 Cap
Weight: 20.8g
Dimensions: 60 x 25 x 11 mm
Hi-Res Support: 768kHz / 32bit & DSD512
Gain Setting: High & Low
DAC Chip: ESS ES9069Q
Digital Filters: 8 filters
3.5mm Output:
Output Power: 2.1V @ 32Ω (137 mW @ 32Ω)
Frequency Response: 20Hz-40kHz (-0.7dB)
THD+N: 0.0008% @ 32Ω (A-Weighted @ 1.5V)
S/N Ratio: -120dB @ 32Ω (A-Weighted)
Dynamic Range: -120dB @ 32Ω (A-Weighted)
Channel Separation: -71dB @ 32Ω
Output Impedance: 0.4Ω
4.4mm Output:
Output Power: 2.7V @ 32Ω (227 mW @ 32Ω)
Frequency Response: 20Hz-40kHz (-0.7dB)
THD+N: 0.0008% @ 32Ω (A-Weighted @ 2V)
S/N Ratio: -120dB @ 32Ω (A-Weighted)
Dynamic Range: -116dB @ 32Ω (A-Weighted)
Channel Separation: -106dB @ 32Ω (A-Weighted)
Output Impedance: 0.8Ω
Features:
1. Latest ESS ES9069Q DAC for high-fidelity audio
2. Dual Ricore RT6863 headphone amplifiers for balanced output and up to 211 mW @ 32Ω of power
3. 0.87-inch OLED display for playback information and settings
4. Three configurable hardware buttons for control functionality
5. USB-C connector for universal compatibility
6. Supports Hi-Res audio up to 32-bit/768kHz and DSD512
Package Include:
1x Shanling UA4 Hi-res Audio Amplifier
1x USB-C to USB-C Cable
1x USB-C to USB-A Adapter
1x Manual
1x Package Box
Additional information
Weight | 0.1 kg |
---|
